Kaidi KDH249C-005 Electric Recliner USB Switch

Kaidi KDH249C-005 Electric Recliner Dual USB Switch

Technical Specification

• KDH249C-005
• MPJLDQ069E-R
• Two buttons, with motifs – Recliner open, Recliner close

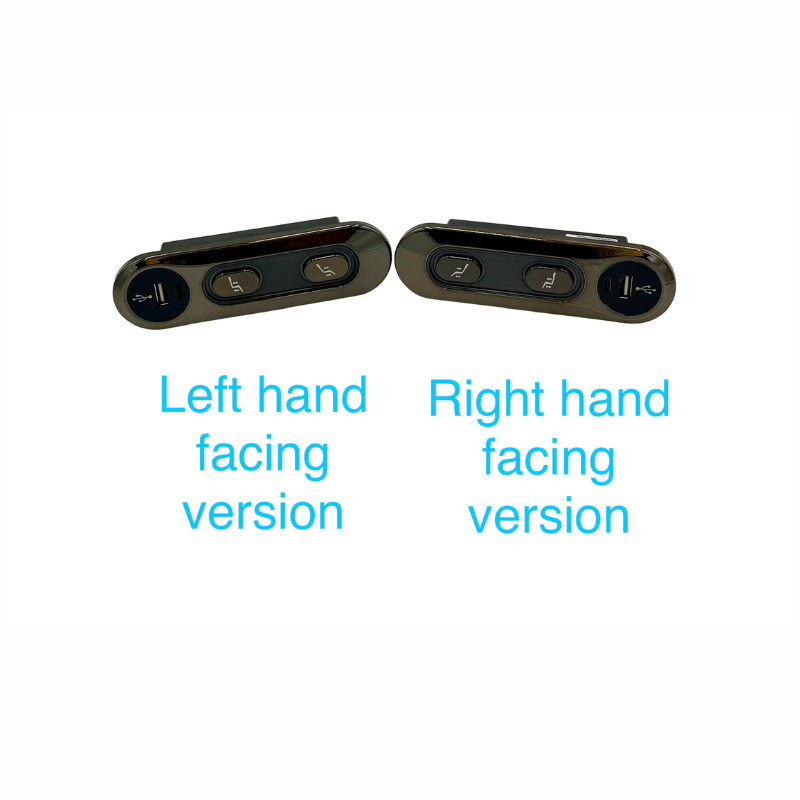

• Suitable for right hand facing side of sofa (when used on outside of arm)
• For use with single actuator recliner systems
• Dual USB sockets – 5v 2A USB-A + USB-C

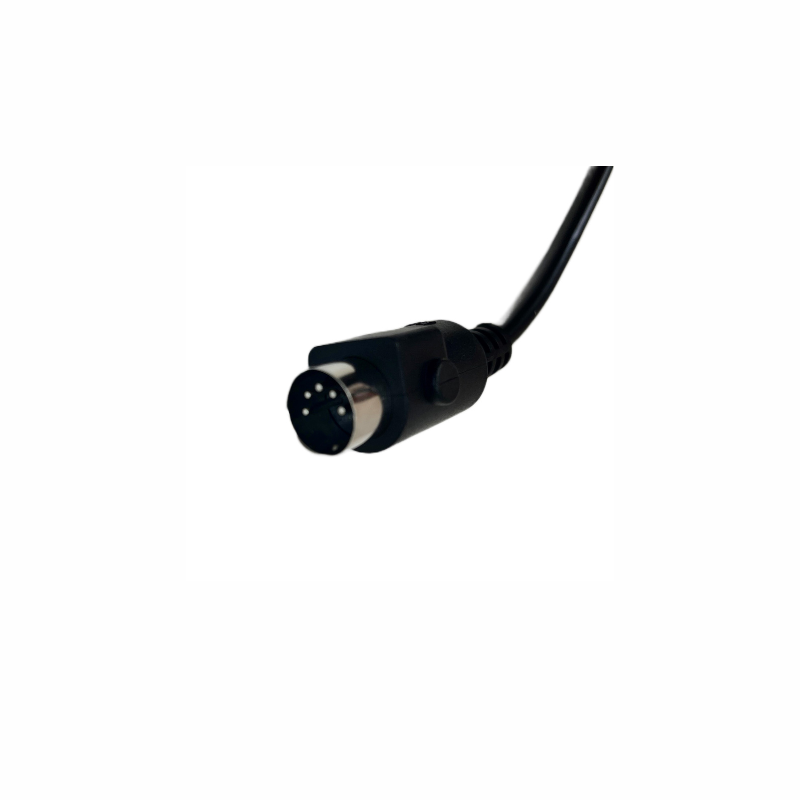

• 5-pin straight switch connector, lead approx. 1450mm in length

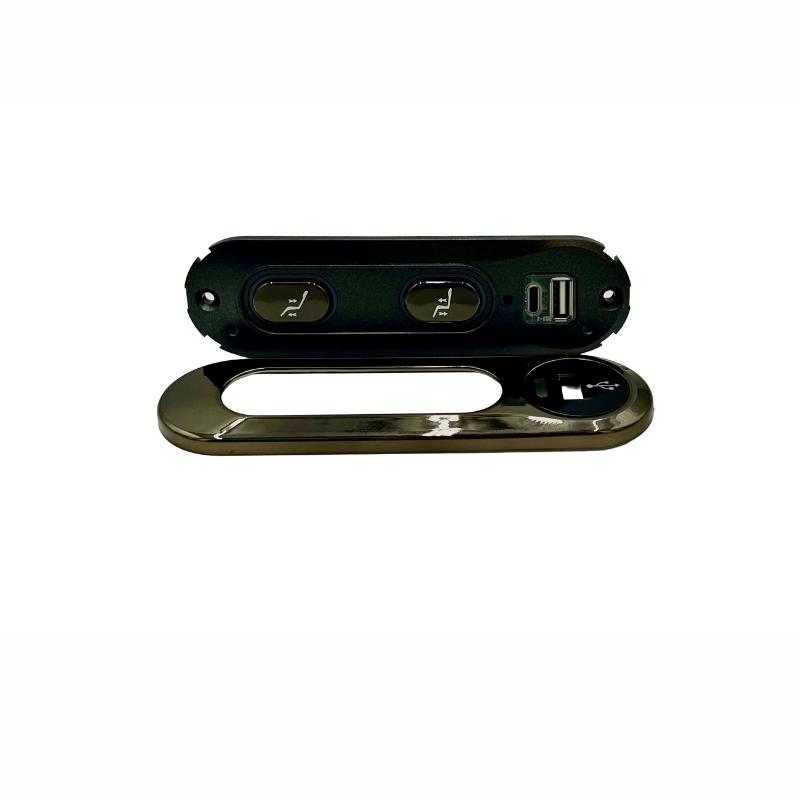

• Dark chrome coloured removable plastic cover
• Two concealed screw holes
• Approx. face size 140mm x 40mm
• Approx. aperture required 115mm x 25mm
• Matching left hand side version available here
