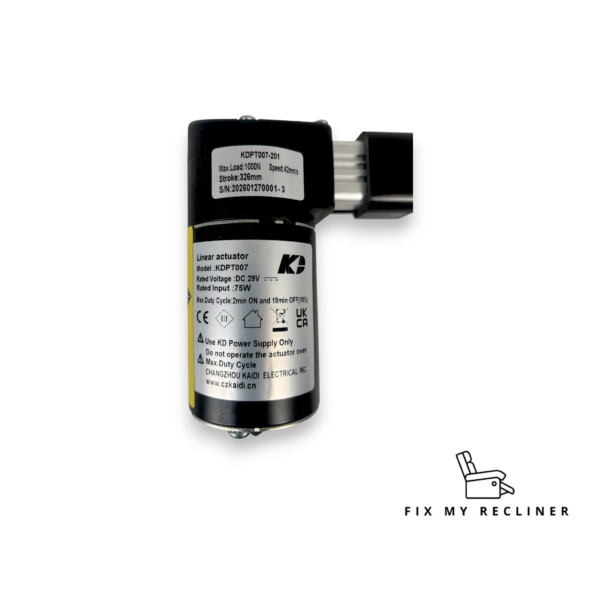

Kaidi KDPT007-201 Electric Recliner Motor Actuator

Kaidi KDPT007-201 Electric Recliner Motor Actuator

Technical Specification

• Model KDPT007-201
• Load 1000N
• Speed 42mm/s
• Stroke 326mm
• Rated voltage 29VDC
• Rated input 75W
• 2-pin OI DC input plug, lead approx. 500mm in length
• 5-pin DIN switch input with securing clip, lead approx. 500mm in length
• 2-pin OI DC output plug with securing clip, lead approx. 500mm in length

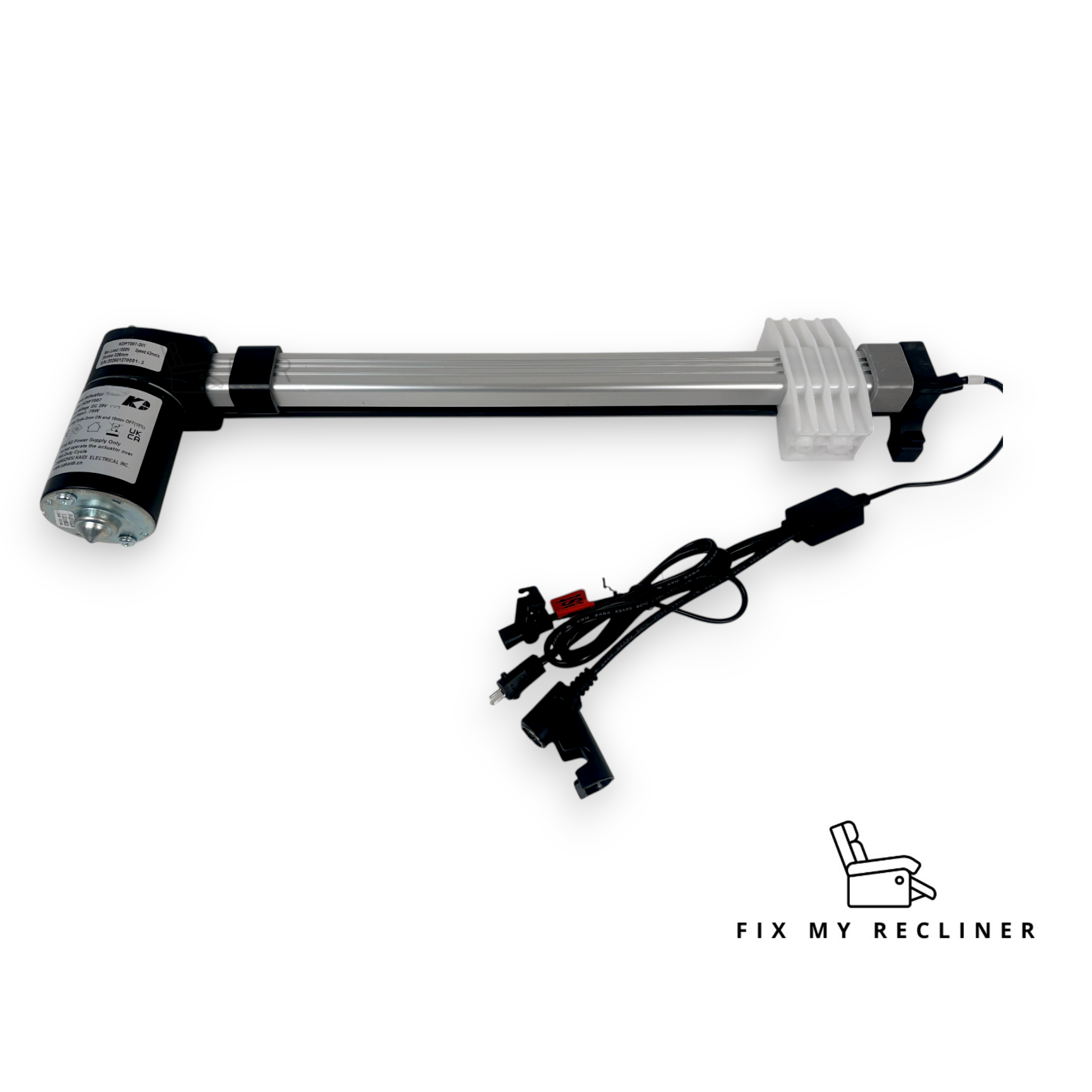

• Slider block style actuator
• Suitable for dual actuator systems

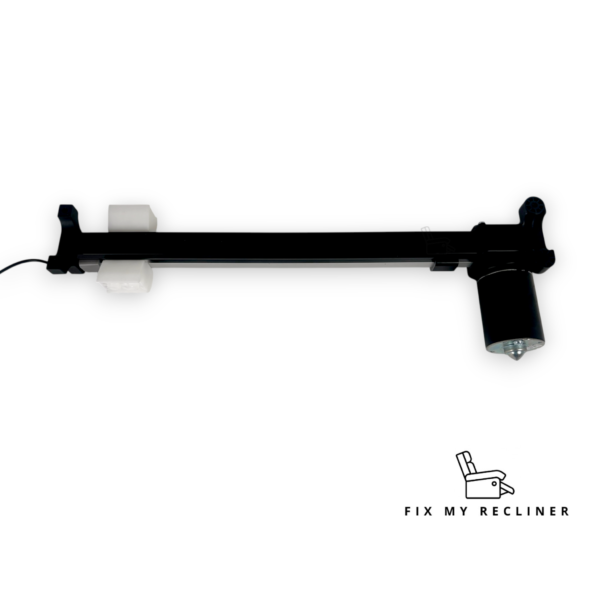

• Frame fixed at each end
• Overall size approx. 530mm
• Frame fixing holes (centres) approx. 510mm
