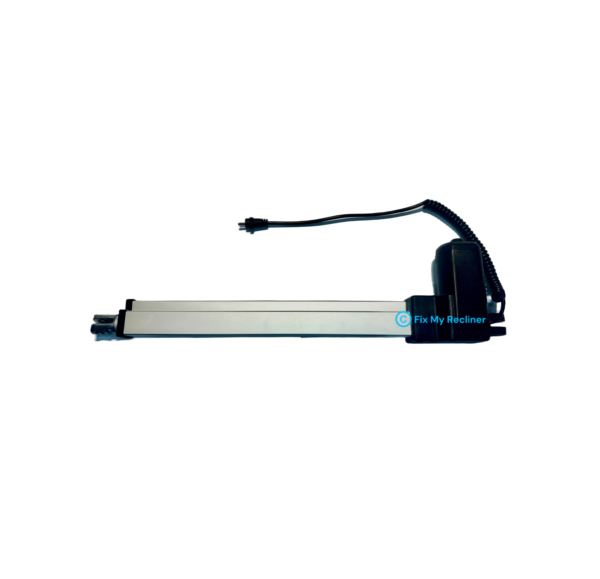

Limoss MD125-88-L3-486-342 Electric Recliner Motor Actuator

Limoss MD125-88-L3-486-342 Electric Recliner Motor Actuator

Technical Specification

• Limoss MD125-88-L3-486-342
• Part number 453731
• Input 18-35V 5A
• Max load push 850N pull 850N
• 2 pin OI connector, coiled lead approx 500mm in length

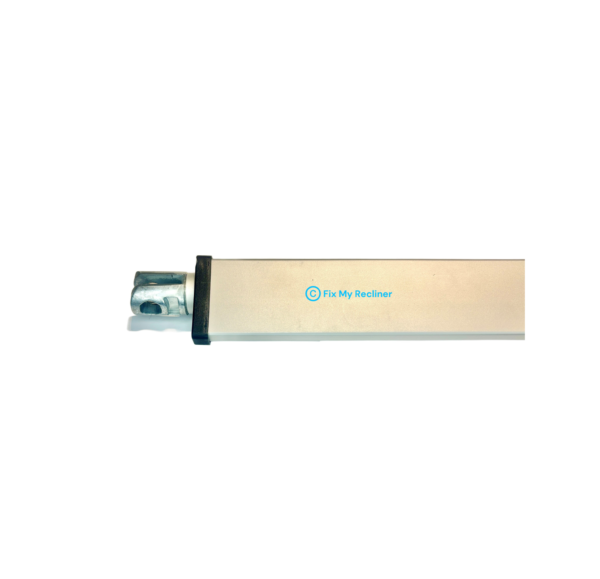

• Metal fixing clevis
• Ram style actuator
• Overall size closed approx 515mm
• Distance between fixing points closed approx 485mm (centres)
• Ram body size approx 355mm
