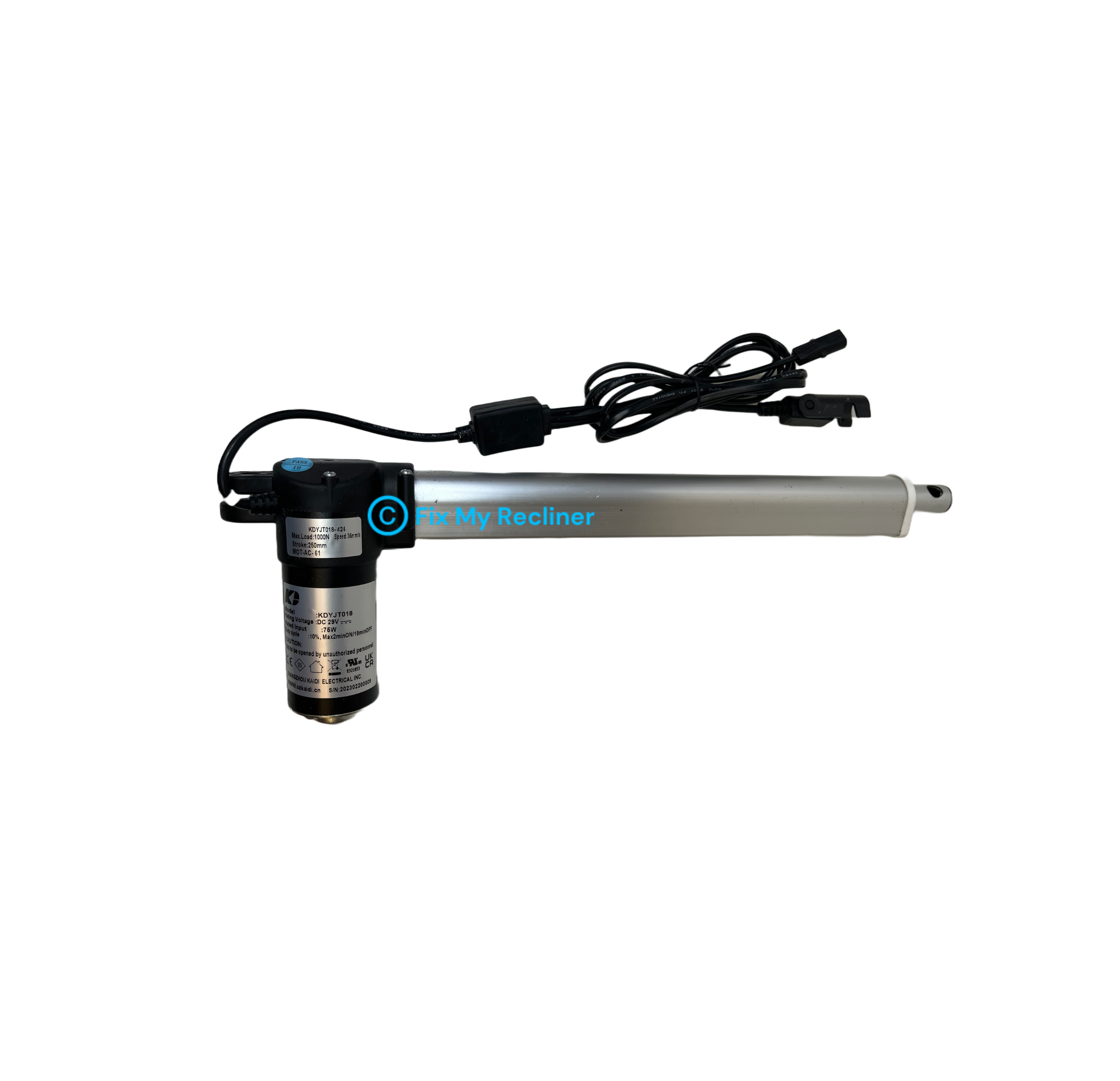

Kaidi KDYJT018-424 Electric Recliner Motor Actuator

Kaidi KDYJT018-424 Electric Recliner Motor Actuator

Technical Specification

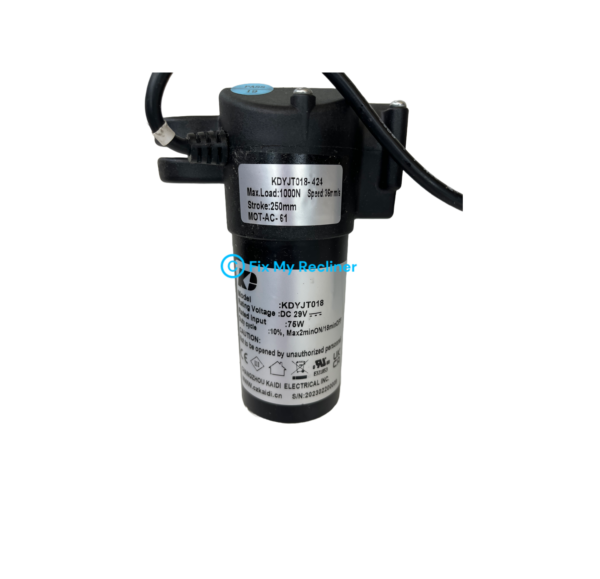

•  YJT018-424
• Load 1000N
• Speed 36mm/s
• Stroke 250mm

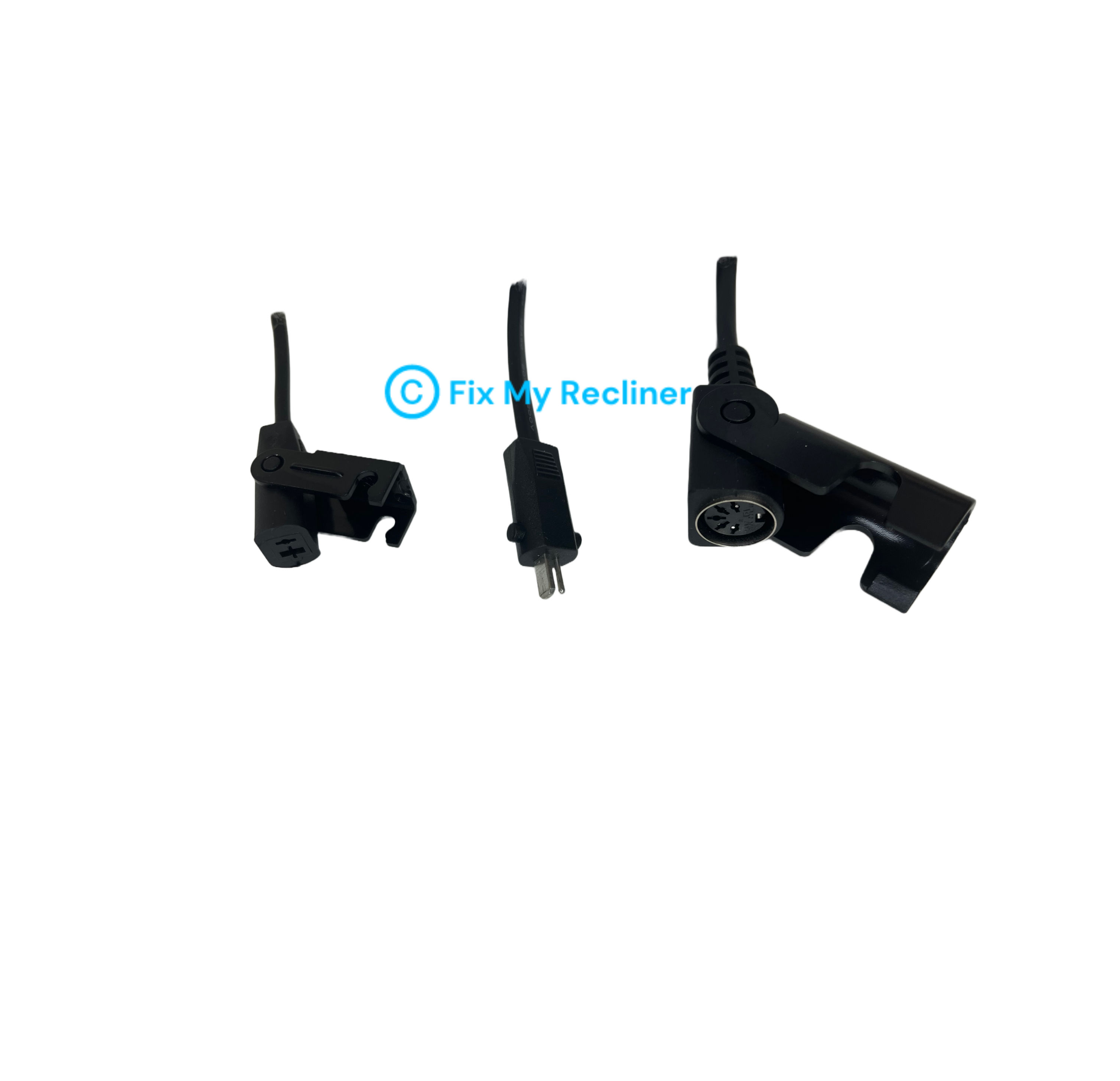

• Switch lead 5 pin and clip 400mm
• Input (power) lead 2 pin 1250mm
• Headrest connection lead 2 pin 1400mm

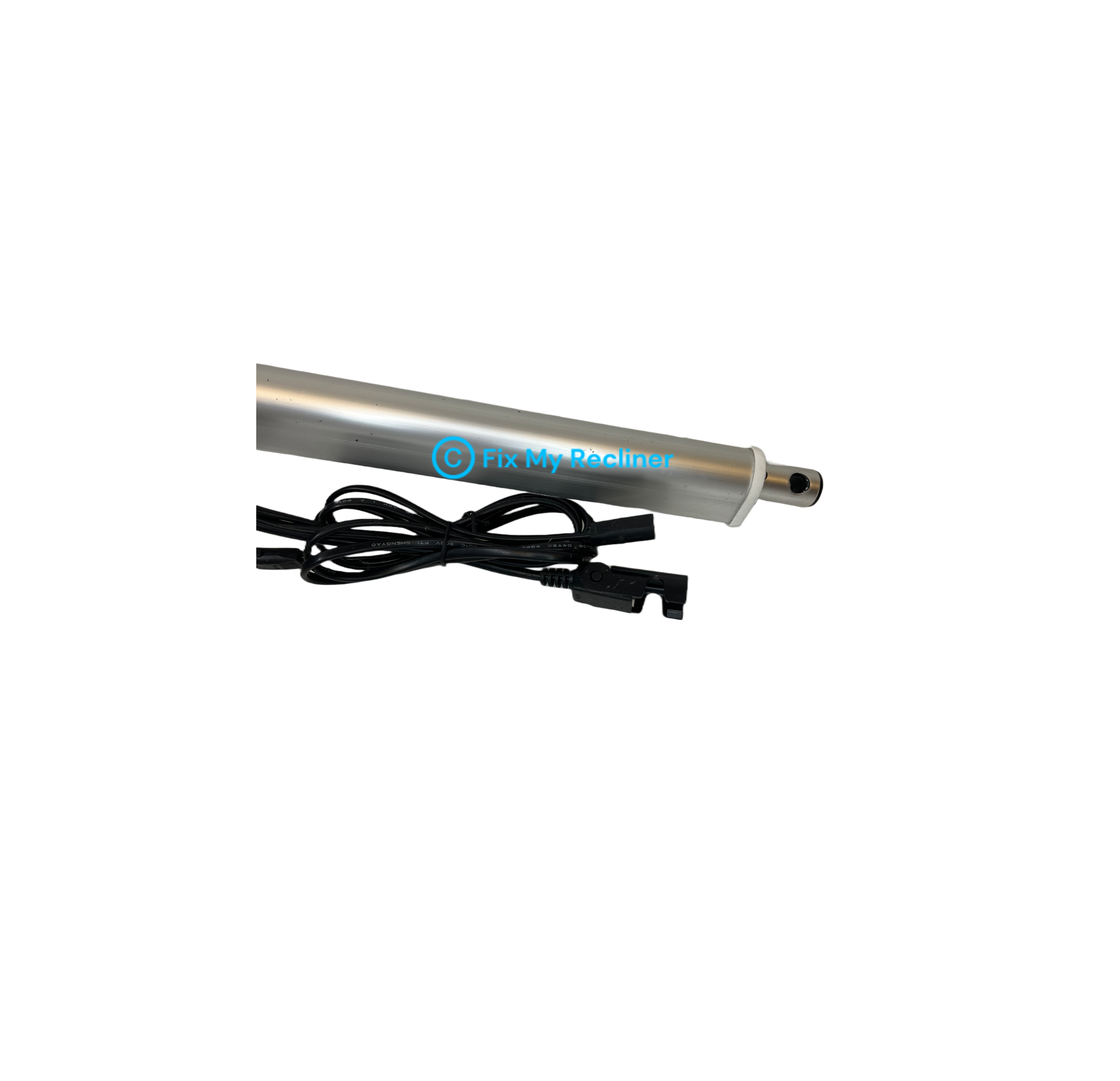

• Extending Ram
• Pin bolt fixings
• Distance between fixings fully closed centres 435mm
