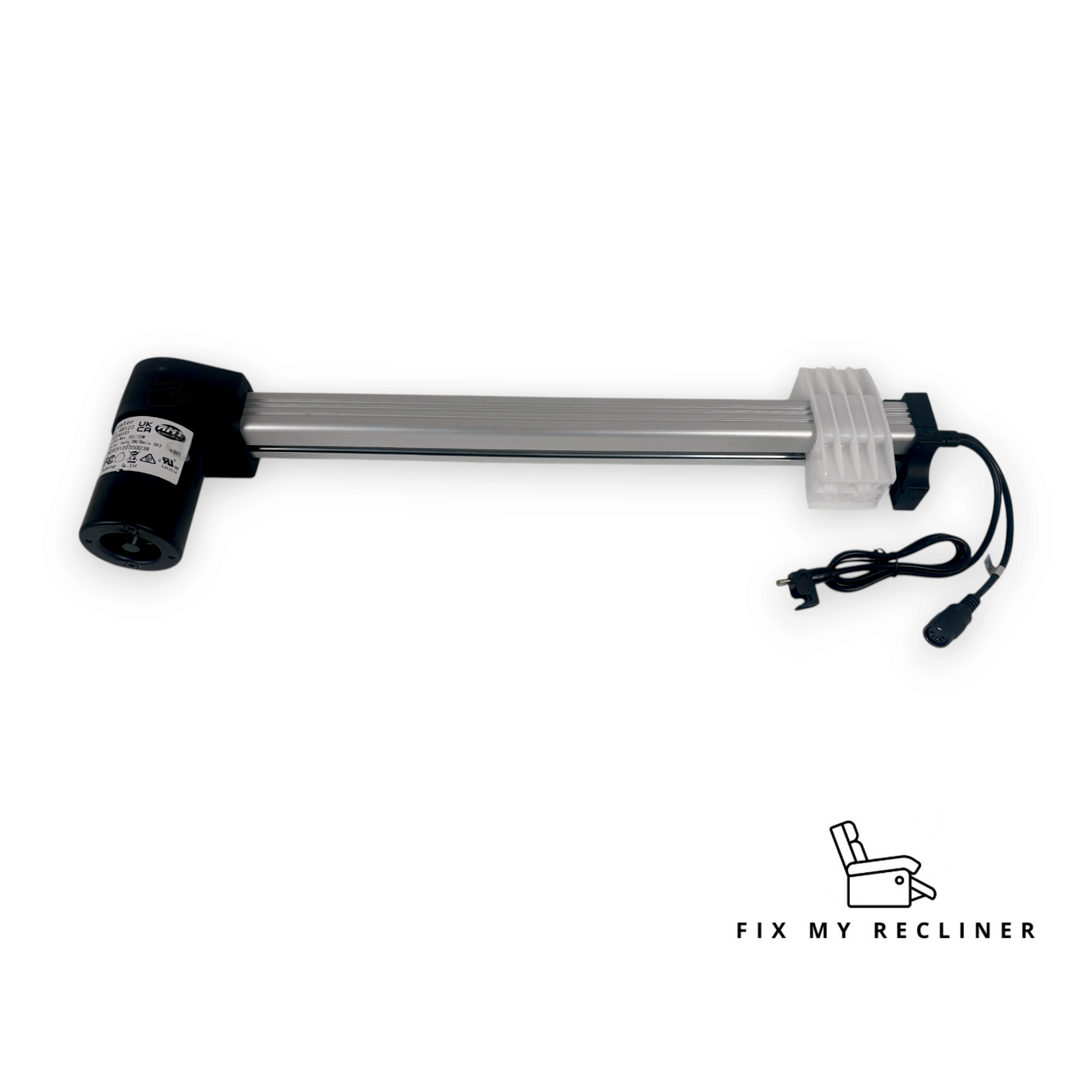

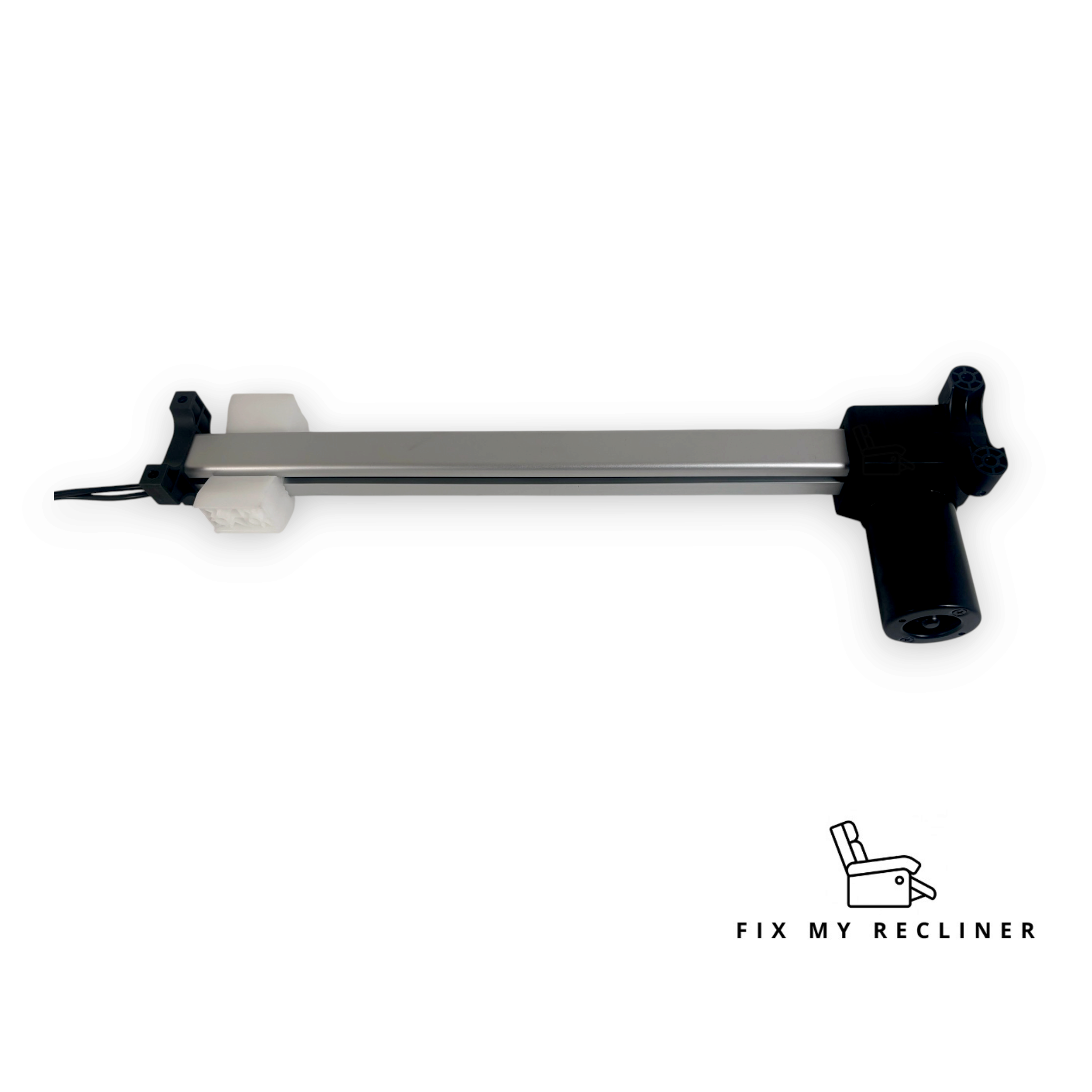

Remacro RMT R8123 R812302040333 Electric Recliner Motor Actuator

Remacro RMT R8123 R812302040333 Electric Recliner Motor Actuator

Technical Specification

• Model range R8123
• Part number R812302040333
• Suitable for single actuator systems

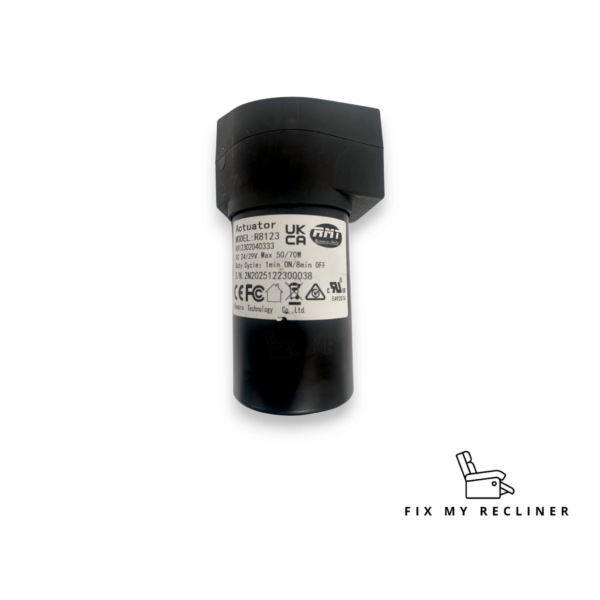

• 24Vdc 50W or 29Vdc 70W
• Duty cycle 1min on/8 min off

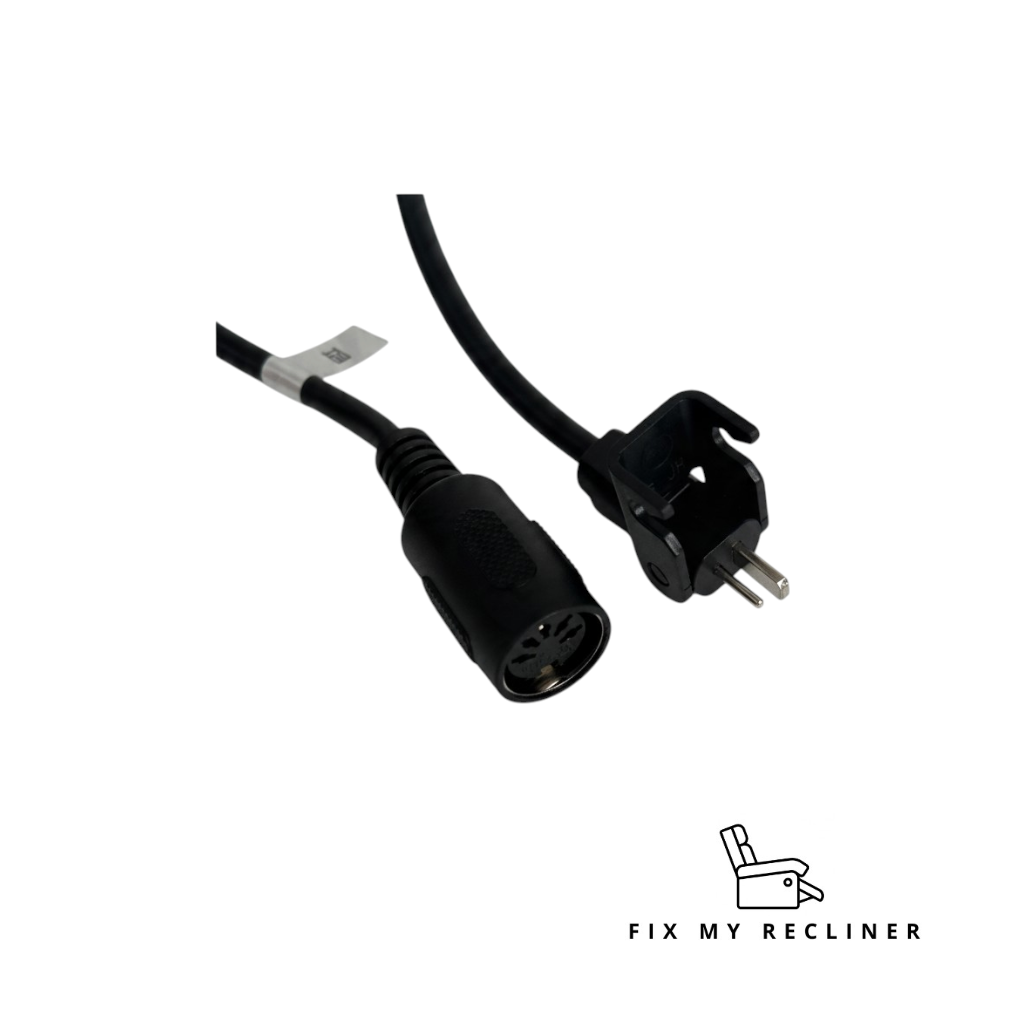

• 2-pin OI DC input plug, lead approx. 600mm in length with securing clip
• 5-pin DIN switch connector, lead approx. 200mm in length
• Slider block style actuator
• Frame fixings at both ends
• White slider block
• Overall length approx. 530mm
• Distance between frame fixing bolts (centres) approx. 435mm

We stock various versions of the R8123 motor please ensure you match the part code exactly for a like for like replacement.
