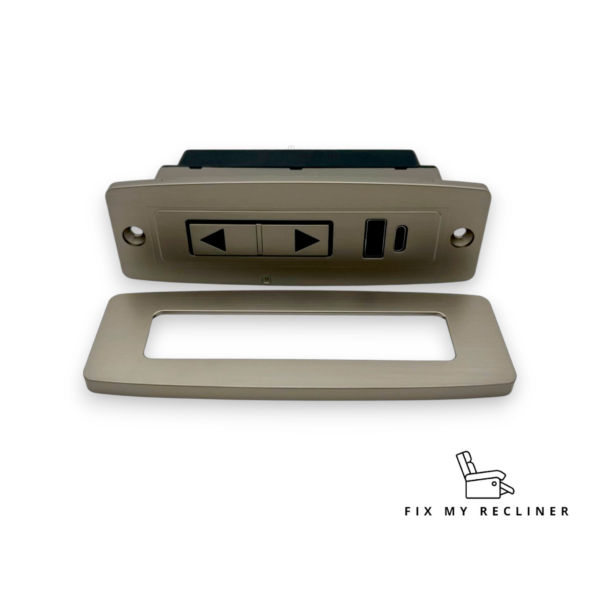

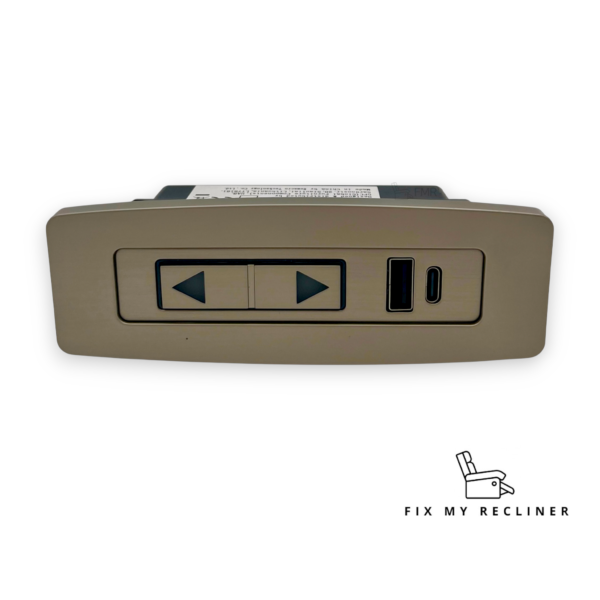

RMT RK23300776X000 Two Button Electric Recliner USB Switch

RMT RK23300776X000 Two Button Electric Recliner USB Switch

Technical Specification

• Model GFCBUTM1NBM
• M/N RK23300776X000
• Two buttons – Recliner open , Recliner close
• Buttons with arrow motifs
• Input 29VDC 2A
• USB output 5V 2A
• USB-A and USB-C ports

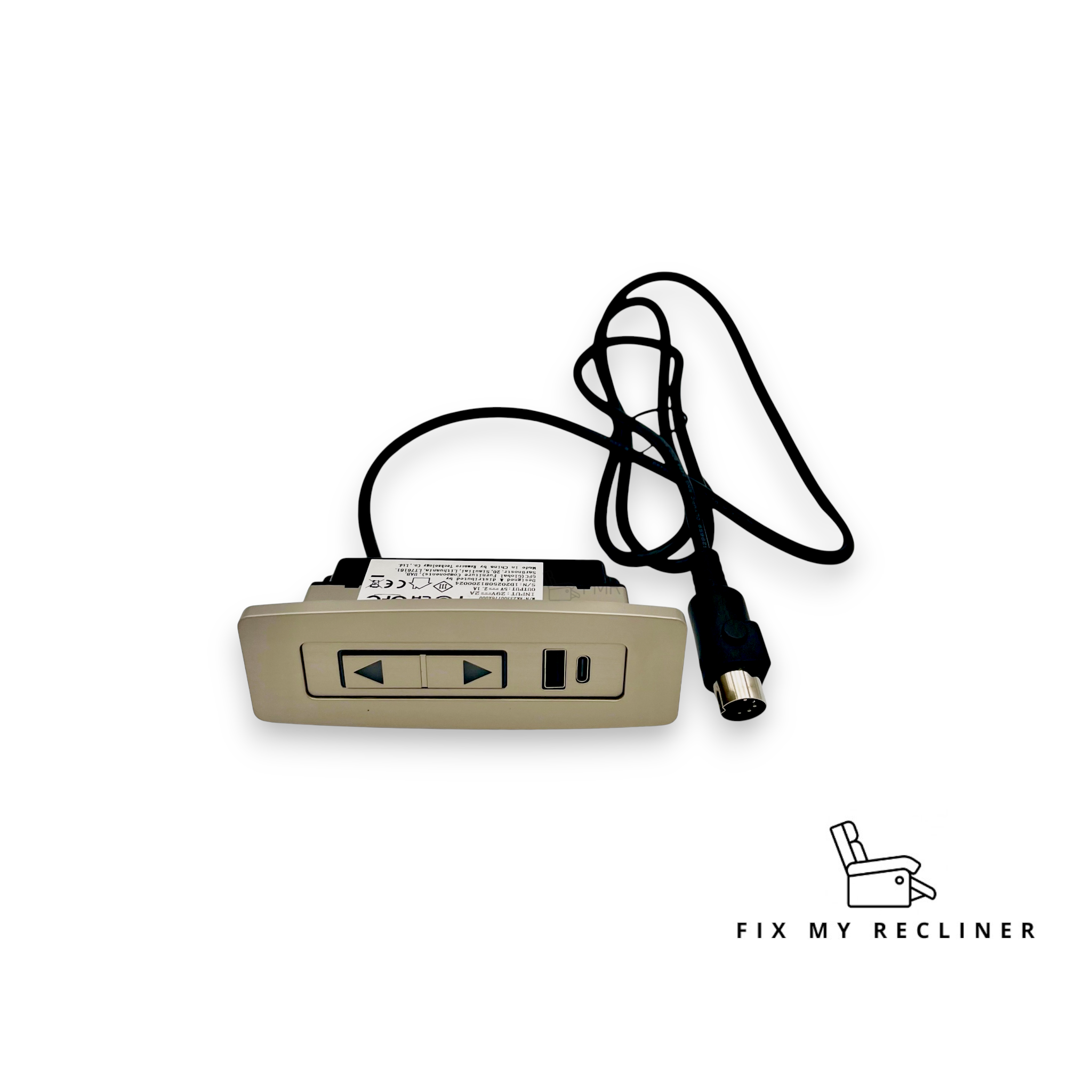

• 5-pin DIN straight connector, lead approx. 1450mm in length
• Suitable for single actuator systems – matching single, dual and triple actuator versions available
• Universal fitting for either side of a recliner
• Removable brushed silver plastic fascia cover
• Two concealed screw holes
• Fascia size approx. 120mm x 40mm
• Aperture required approx. 90mm x 30mm
