Remacro RMT RK23300148X000 Electric Recliner Button Switches

Remacro RMT RK23300148X000 WPS4Y00038 Electric Recliner Button Switches

Technical Specification

• RK23300148X000

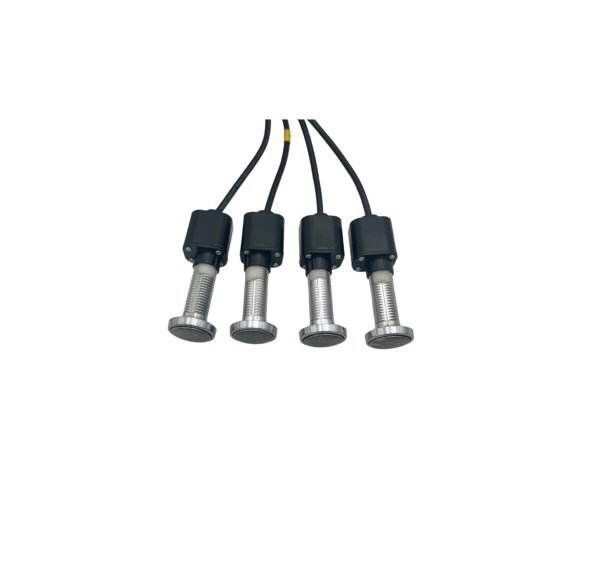

• Four individual circular dark chrome operation buttons – Footrest and headrest open marked #1 on red tab, Footrest and headrest close marked #2 on yellow tab, Headrest open marked #3 on blue tab, Headrest close marked #4 on green tab
• Once fitted only touch buttons become visible externally
• Button diameter approx. 25mm
• Buttons have a dark chrome push button with chrome rim
• Button cable length approx. in length 475mm (from junction box)
• Input 29V 2A
• Universal fitting suitable for both sides of a recliner
• For use with dual actuator systems

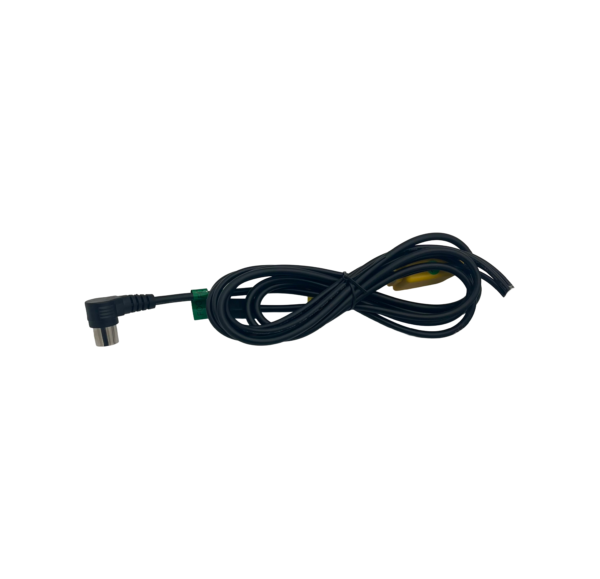

• 5-pin DIN right angled switch connecter, lead approx. 1050mm in length (from junction box) marked “footrest” on a green tab
• 2-pin OI female socket, lead approx. 1000mm in length (from junction box) marked “headrest” on a yellow tab
• Plastic washer and nut for securing buttons to upholstery included
• Aperture required for button housing approx.. 25mm x 20mm x 70mm deep

Please note there a number of variations of this switch design available with differing part numbers that have different operational specifications. We only recommend replacing like for like part numbers. Other versions with differing specifications are also available on our website so please check part number details before ordering or contact us for further help
