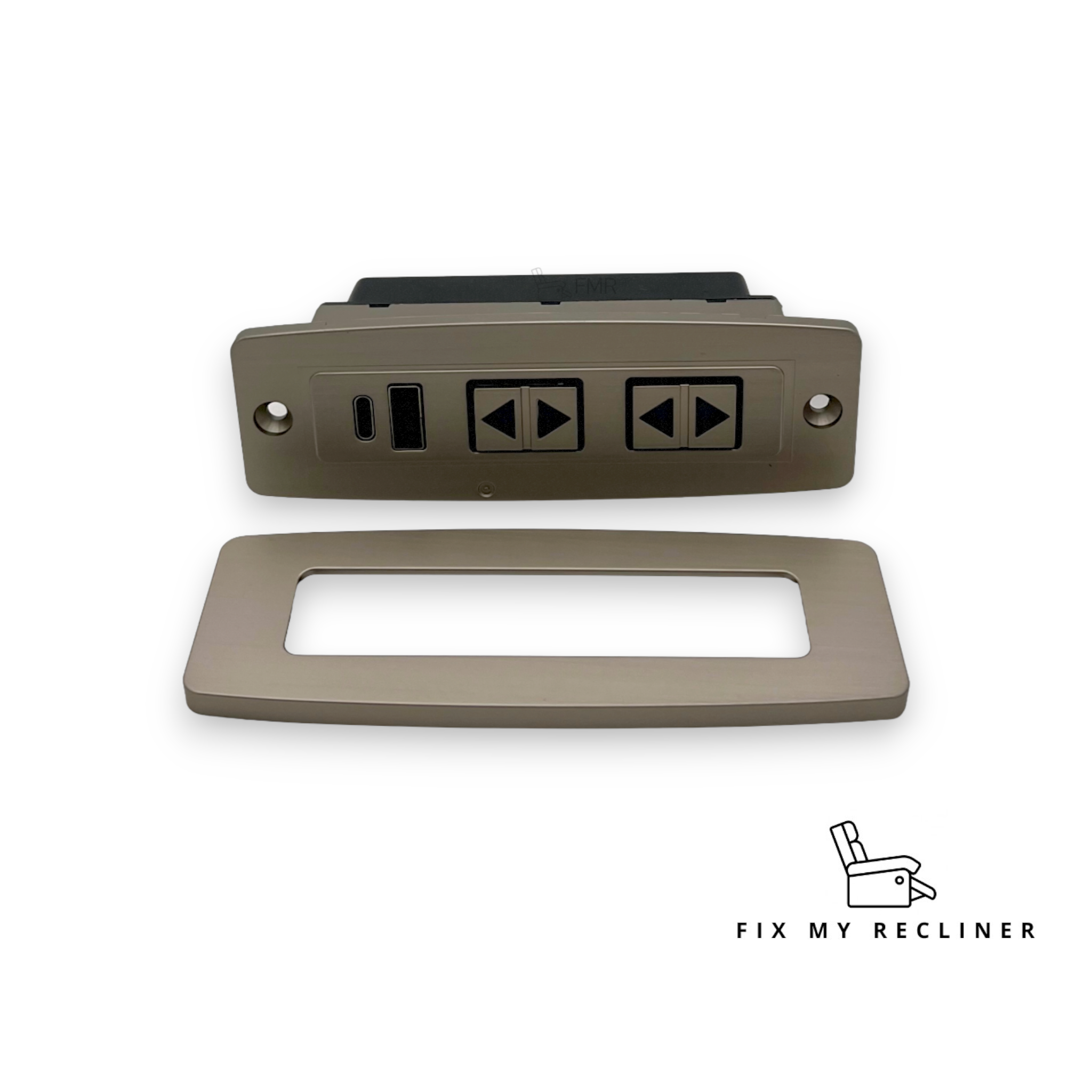

RMT RK23300746X000 Two Button Electric Recliner USB Switch

RMT RK23300746X000 Two Button Electric Recliner USB Switch

Technical Specification

• Model GFCBUTM2NBM
• M/N RK23300746X000
• Two toggle buttons – Recliner open & close, Headrest open & close
• Buttons with arrow motifs
• Input 29VDC 2A
• USB output 5V 2A
• USB-a and USB-C ports
• 5-pin DIN straight connector, lead approx. 1450mm in length marked “Footrest” on a green tab
• 2-pin OI female connector, lead approx. 1450mm in length marked “Headrest” on a yellow tab
• Suitable for dual actuator systems – matching single, dual and triple actuator versions available
• Universal fitting for either side of a recliner
• Removable brushed silver plastic fascia cover
• Two concealed screw holes
• Fascia size approx. 120mm x 40mm
• Aperture required approx. 90mm x 30mm
