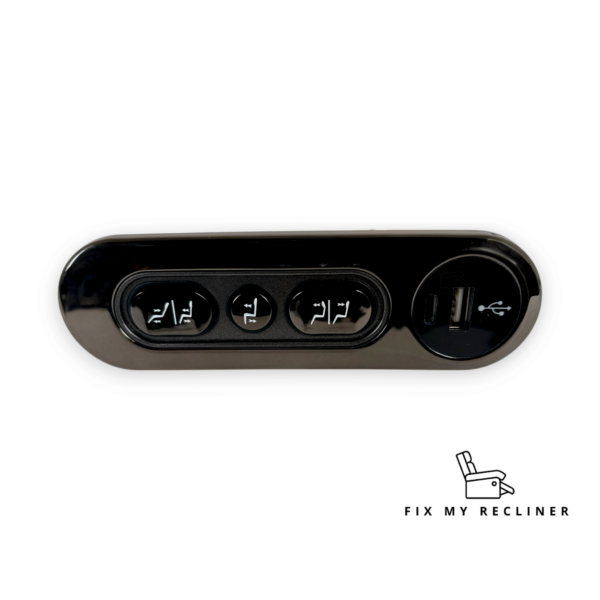

Kaidi KDH249D-010 Electric Recliner USB Switch

Kaidi KDH249D-010 Electric Recliner Dual USB Switch

Technical Specification

• KDH249D-010

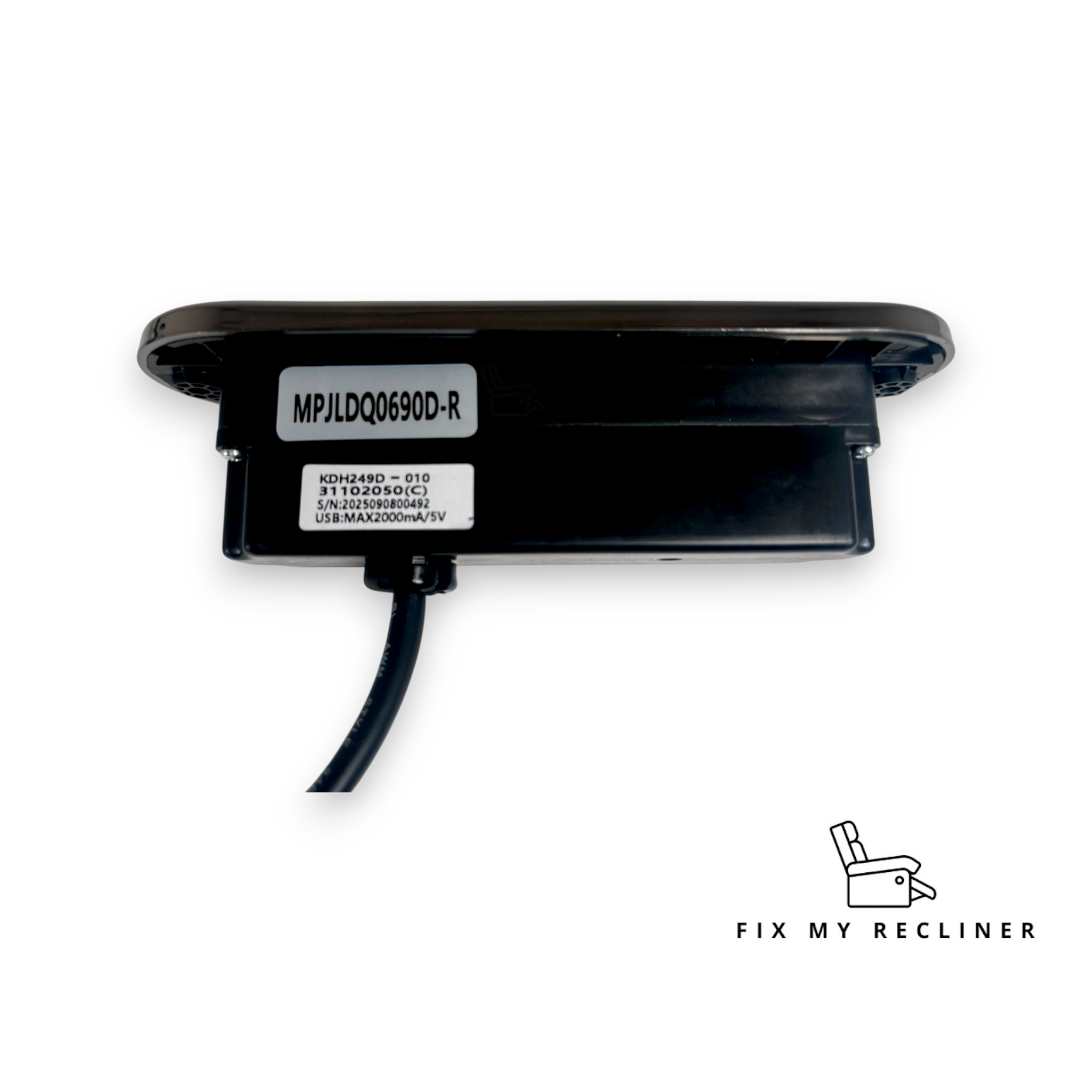

• MPJLDQ0690D-R
• Two toggle buttons, with motifs – Footrest open & close, Headrest open & close
• Reset button – all functions close
• Suitable for right hand facing side of sofa (when used on outside of arm)
• For use with dual actuator recliner systems
• Dual USB sockets – 5v 2A USB-A and USB-C

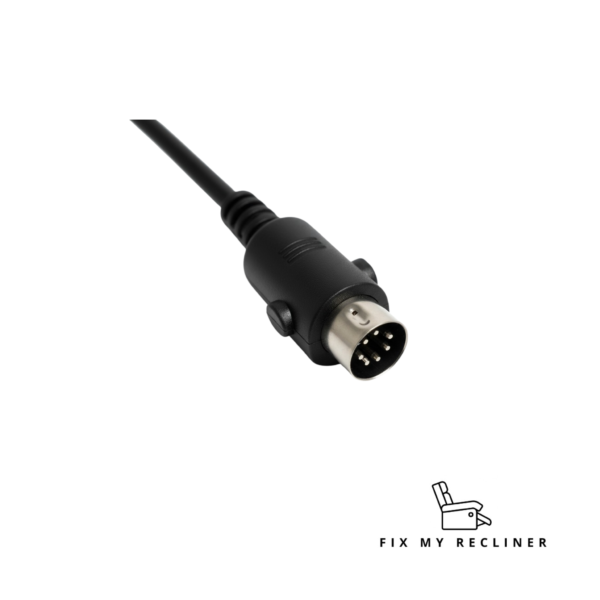

• 5-pin straight switch connector, lead approx. 1400mm in length

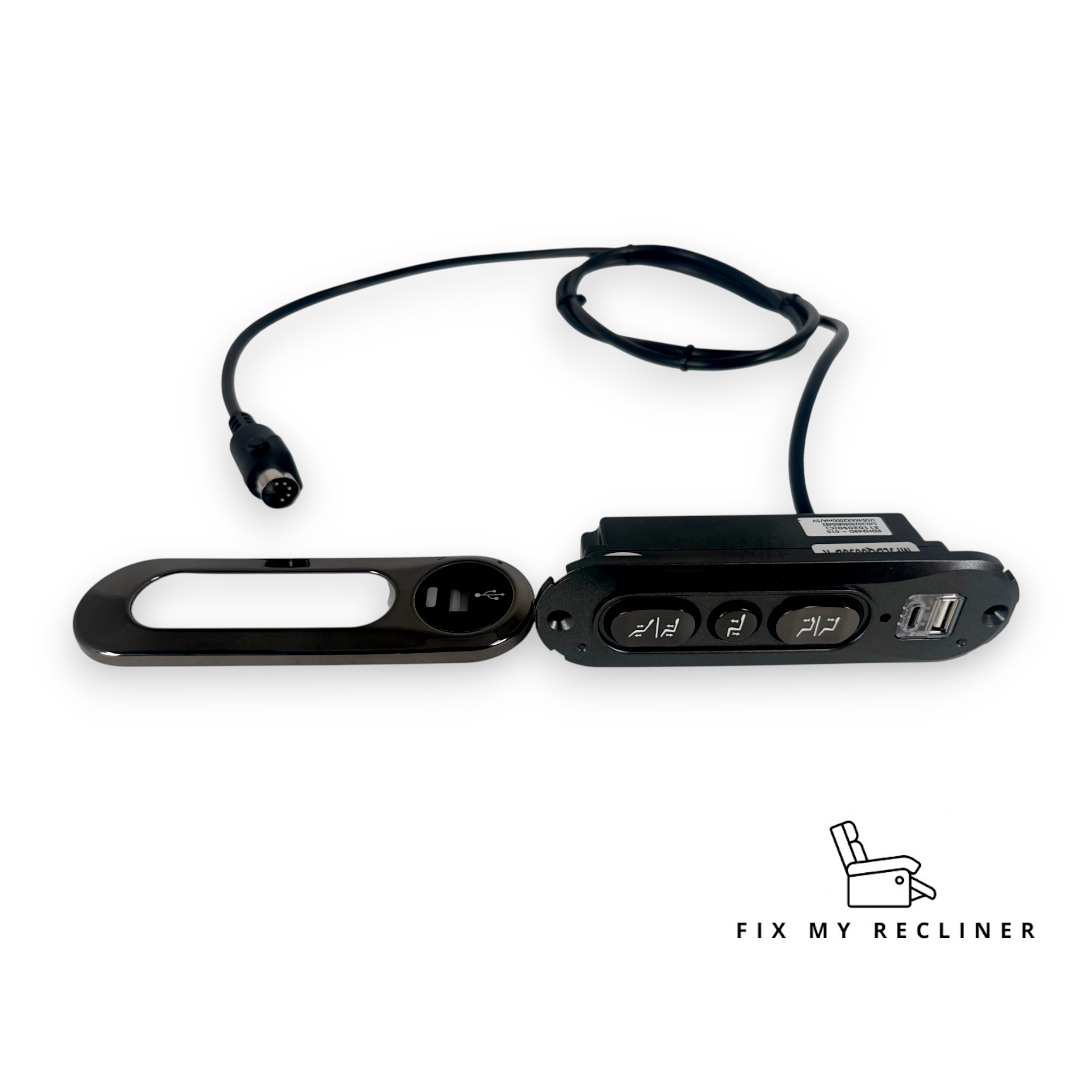

• Dark nickel coloured removable plastic cover
• Two concealed screw holes
• Face size 140mm x 40mm
• Aperture required 115mm x 25mm

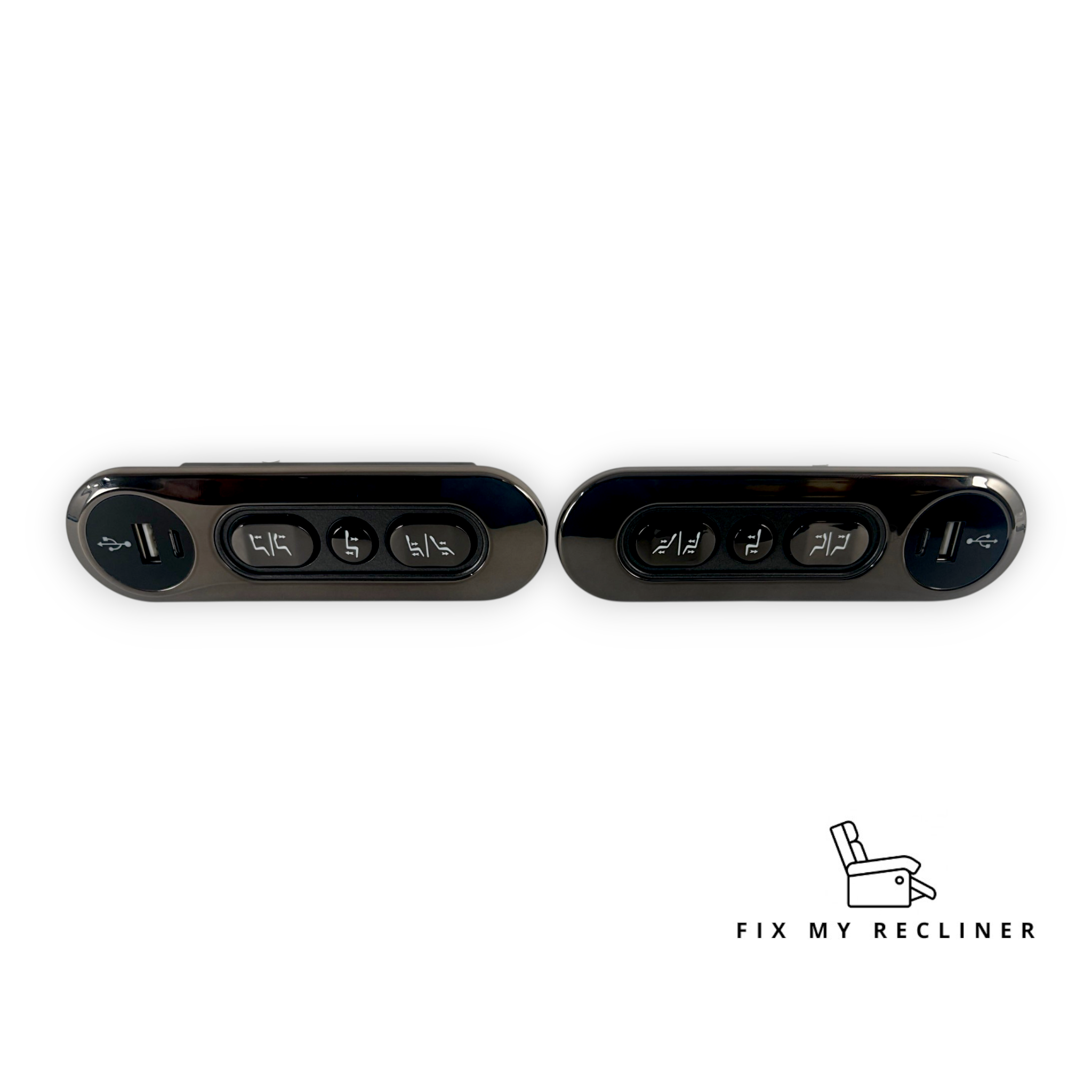

• Matching left hand side version available here
